一、组网需求

保护总部与分支子网之间的IP数据通信，通过隧道建立连接，并对数据进行加密，保证安全，GRE ovre IPSEC 的原理是用户业务数据封闭到GRE隧道，GRE隧道的数据再被ipsec加密，所以配置ipsec感兴趣流时，源地址和目标地址为两端路由器的外网接口的IP地址；

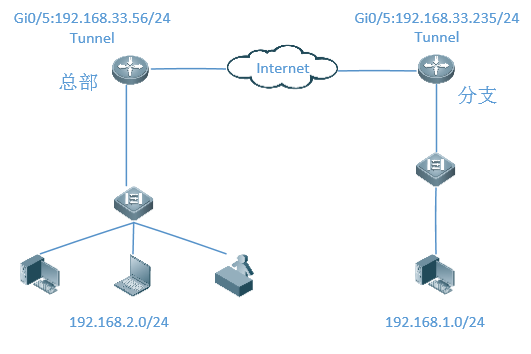

二、组网拓扑

三、功能原理

采用GRE建立隧道，实现内网间的通信，使用ipsec对总部与分支间的隧道流量进行加密

四、配置要点

1、本配置是建立在EG已经正确完成了快速配置的基础之上的；

2、配置routeA（总部）为GRE over ipsec服务器端；

3、配置routeB（分支）为GRE over ipsec客户端；

4、两端的参数要保持一致

GRE Tunnel的隧道的源目的地址要相互对应

认证方式：预共享密钥，密钥为ruijie

IKE算法：3DES-MD5，DH2

IPSec协商交互方案：esp(3des-md5)

五、配置步骤

Web上还不支持GRE隧道的配置，只能在CLI下配置

1.总部

1)、配置ipsec第一阶段

crypto isakmp enable

crypto isakmp policy 1

encryption 3des

authentication pre-share

hash md5

group 2

2)、配置预共享密钥和变换集合

crypto isakmp key 0 ruijie address 192.168.33.235

crypto ipsec transform-set myset esp-3des esp-md5-hmac

mode transport

3)、配置感兴流

ip access-list extended 199

10 permit gre host 192.168.33.56 host 192.168.33.235

4)、定义一个加密映射集合

crypto map mymap 1 ipsec-isakmp

set peer 192.168.33.235

set transform-set myset

match address 199

5)、在接口上调用加密图

interface GigabitEthernet 0/5

ip address 192.168.33.56 255.255.255.0

crypto map mymap

6)、配置GRE的Tunnel接口

interface tunnel 1

tunnel source 192.168.33.56

tunnel destination 192.168.33.235

ip address 2.2.2.1 255.255.255.0

7)、配置路由

ip route 192.168.1.0 255.255.255.0 tunnel 1

ip route 0.0.0.0 0.0.0.0 192.168.33.1 #192.168.33.1为外网网关

2.分支

1)、配置ipsec第一阶段

crypto isakmp policy 1

encryption 3des

authentication pre-share

hash md5

group 2

2)、配置预共享密钥和变换集合

crypto isakmp key 0 ruijie address 192.168.33.56

crypto ipsec transform-set myset esp-3des esp-md5-hmac

mode transport

3)、配置感兴流

ip access-list extended 199

10 permit gre host 192.168.33.235 host 192.168.33.56

4)、定义加密映射

crypto map mymap 1 ipsec-isakmp

set peer 192.168.33.56

set transform-set myset

match address 199

5)、在接口上调用加密图

interface GigabitEthernet 0/5

ip address 192.168.33.235 255.255.255.0

crypto map mymap

6)、配置GRE的Tunnel接口

interface tunnel 1

tunnel source 192.168.33.235

tunnel destination 192.168.33.56

ip address 2.2.2.2 255.255.255.0

7)、配置路由

ip route 192.168.2.0 255.255.255.0 tunnel 1

ip route 0.0.0.0 0.0.0.0 192.168.33.1 #192.168.33.1为外网网关

六、配置验证

1.查看ipsec状态

zongbu#show crypto state

destination source state st-id pa-st mapid mode ir lifetime

192.168.33.235 192.168.33.56 IKE_IDLE 1 0 1 9 1 85948

2.查看隧道流量

zongbu#show crypto ipsec sa

Interface: Tunnel 1

Profile map tag:profile-map

==================================

sub_map type:profile, seqno:0, id=1

local ident (addr/mask/prot/port): (192.168.33.56/0.0.0.0/47/0))

remote ident (addr/mask/prot/port): (192.168.33.235/0.0.0.0/47/0))

PERMIT

#pkts encaps: 4861, #pkts encrypt: 4861, #pkts digest 4861

#pkts decaps: 0, #pkts decrypt: 0, #pkts verify 0

#send errors 235, #recv errors 0

Inbound esp sas:

spi:0x34ef2301 (888087297)

transform: esp-3des esp-md5-hmac

in use settings={Transport Encaps,}

crypto map profile-map 0

sa timing: remaining key lifetime (k/sec): (4606445/3143)

IV size: 0 bytes

Replay detection support:Y

Outbound esp sas:

spi:0x10c2d27a (281203322)

transform: esp-3des esp-md5-hmac

in use settings={Transport Encaps,}

crypto map profile-map 0

sa timing: remaining key lifetime (k/sec): (4606445/3143)

IV size: 0 bytes

Replay detection support:Y
